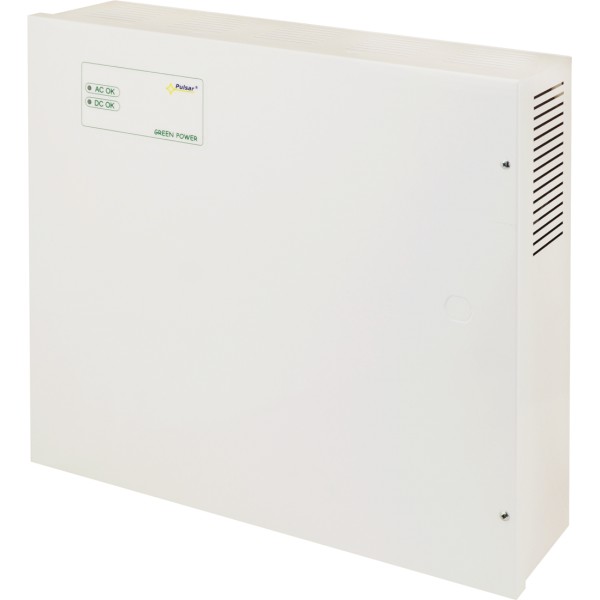

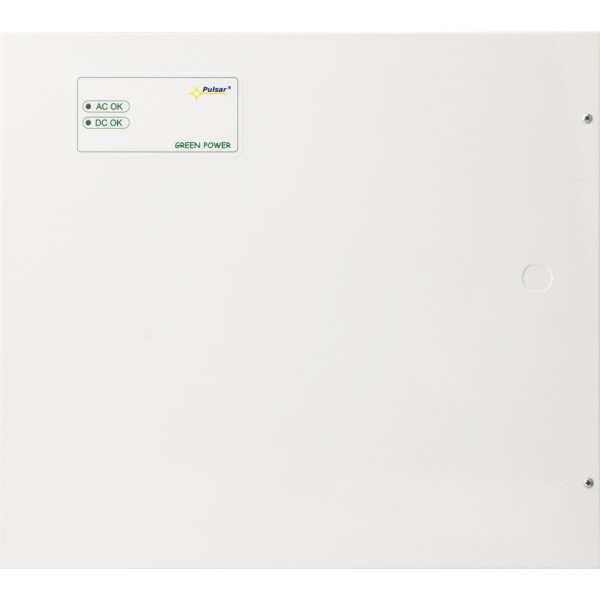

Pulsar HPSB10A24C
HPSB 27,6V/10A/2×17Ah buffer, switch mode power supply unit
Power supply 176÷264VAC
Power supply output 10A/27.6VDC
Battery charging current 1A/2A/4A
Battery 2 x 7Ah / 2 x 17Ah
Efficiency 85%
Dimensions 400 x 350 x 92 [+/-2 mm]
distance from floor: 8 mm
Protections SCP, OLP, OVP, UVP, OHP, tamper – opening of enclosure
Closing bolted (lock assembly possible)
Installation surface-mounted
Indication LED optical indication
Material sheet metal DC01, 1mm, RAL9003 (white), metallic
IP protection class IP 20
